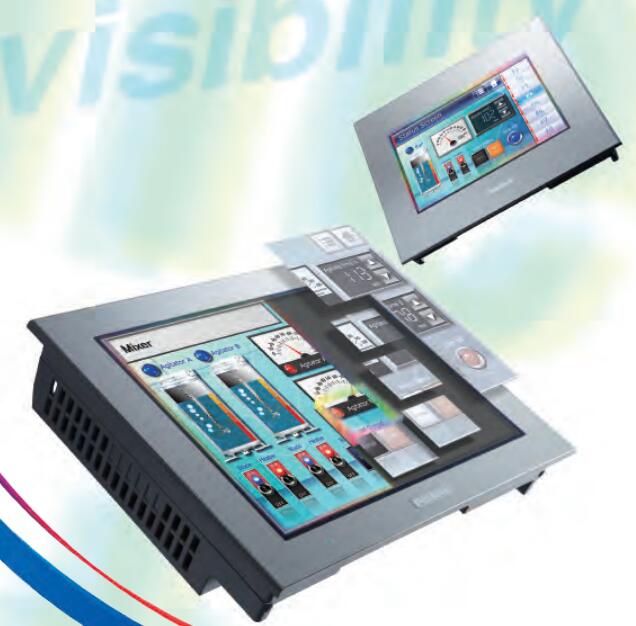

Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 8MB (internal memory), SRAM128KB (backup memory).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1 PFXGP4301TADC.
Replaceable battery: no (rechargeable battery) PFXGP4301TADC
Alarm analysis function block: No.
Panel opening size:
Wide 156 x high 123.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: none.
Easily connect a variety of USB devices
Can be easily connected to the man-machine interface serial controller, EZ series accessories, bar code reader and USB memory PFXGP4301TADC.
Remote data acquisition and management
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency. Controller CANopen models: bit variable input: 512 points, the output of a bit: 512 point, integer variable input: 128 point, integer variable output: 128 points, connectors: D-Sub 9 pin (convex type) PFXGP4301TADC.
Specification: DC24/C (control) level models.
Display type: TFT color LCD.
Display size: 7.5 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Brightness adjustment: cold cathode lamp (backlight lamp replacement: return to repair).
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Providing operation and maintenance instructions through video mode, which can save maintenance cost.
The operation and maintenance instructions provided by the video mode can make any operator easy to master the operation method.
Data transmission using USB memory.
In the production site using USB memory can be easily transferred to the production line change and change the screen data.
The use of GP can easily find and deal with the fault.
Pro-face provides a variety of different uses of the program monitoring screen,
For example, for the establishment of new production lines, for the improvement of the installation of sensors for the occasion.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Easily realize visualization.
Simply connect the production site PC to GP, and run the EX Pro-Server software on the PC,
The production site data can be expressed in the form of a Excel table.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
No need to open tthe control panel, through the PLC to monitor the GP program PFXGP4301TADC.
Through the data through the GP function, you can easily debug the ladder program and adjust the data due to changes in the production line by GP easily.
Error visualizationn PFXGP4301TADC.
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit.
