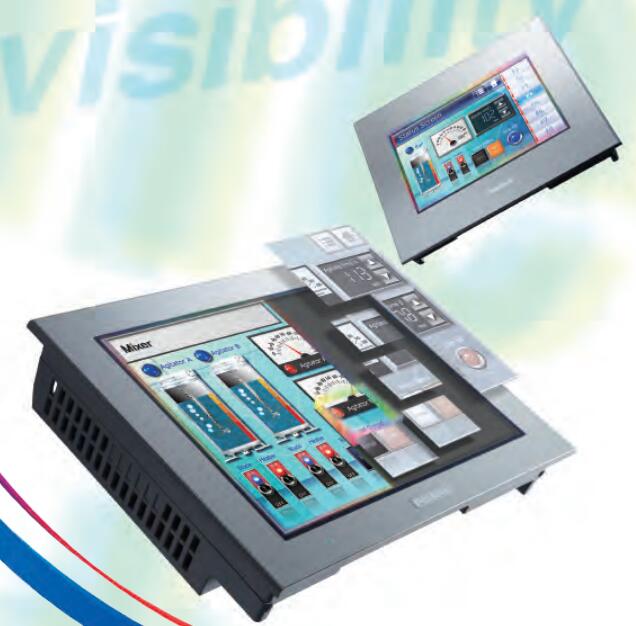

PFXGP4301TAD 5.7 Inch Touch Screen
Proface PFXGP4301TAD Manual And Instructions
PFXGP4301TAD datasheetPDF datasheet
PFXGP4301TAD OPERATION MANUAL
PFXGP4301TAD User's Manual
Proface PFXGP4301TAD Product information and technical parameters：
Brand: Proface
Name: 5.7 Inch Touch Screen
Model: PFXGP4301TAD
Input voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 16MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Simplify troubleshooting.
Using alarm analysis function, can grasp the cause of the fault in time.
Just a few clicks, you can set the alarm analysis screen,
Analysis of the status data of the register related to the alarm.
Remote monitoring and control.
Using remote monitoring software EX GP-Viewer,
Can be from a running PC system Windows remote monitoring of the production scene of the man-machine interface screen.
