7.4 inches or larger, FLEX NETWORK GLC2300 connector (5 groups)Output points: 2 points.
Rated output voltage range: voltage output: -10 to +10V.
Resolution: 11 bit (+ symbol). Size: 7.5 inches.
Display type: TFT color LCD.
Resolution: 640 x 480 pixels (VGA).
Display color: 256 color (no flicker) /64 color (flashing).
Power supply: DC24V.
Interface: USB (host), RS-232C, RS-422/485.
Backlight: cold cathode fluorescent lamp replacement: return to repair PFXZFNAD4
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
You can easily and intuitively set the address by dragging and dropping the mouse.
In addition, click on the use of the address can be displayed on the screen number and part number.
Click the part number to jump to the screen using the widget.

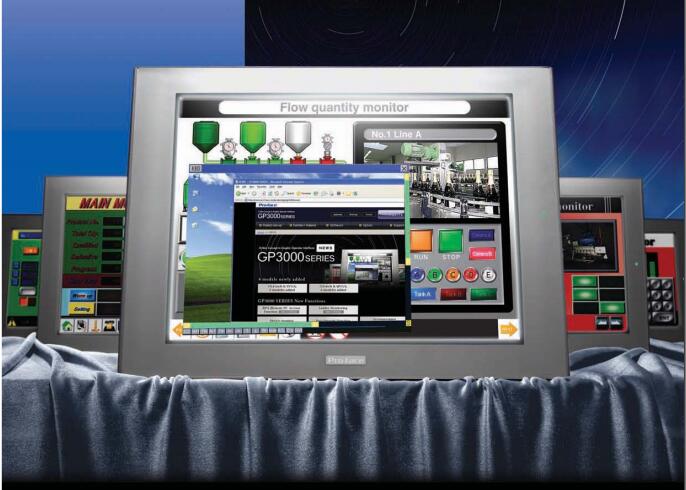

The same software supports all 3000 series of Pro-face man-machine interface.
From the screen to create the programming, the functions are simple and easy to use.
Learn a software, master all the skills.
Support efficient image creation.
ID management and operation log reduces downtime.
Improve the operation mode, reduce the cost and workload.
Analysis of failure causes according to the operation log.
Check register status on historical trend chart.
Drag and drop functionality makes the software interface easier to operate.
A variety of components to provide a variety of components, easy to create a beautiful picture.
In addition, there are a variety of 256 color components can be used.
These sample parts" can be used directly, and the design time is greatly reduced. "Output point: 16 point transistor (NPN).
Rated output voltage: DC24V.
External connection: MIL connector.
Public end design: 16 point /1 public end. Specifications: DC24/S (standard) class models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 7.5 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Touch panel type: resistance type (analog).
Error visualization.
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit.
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
PFXZFNAD4 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PFXZFNAD4&select=5
