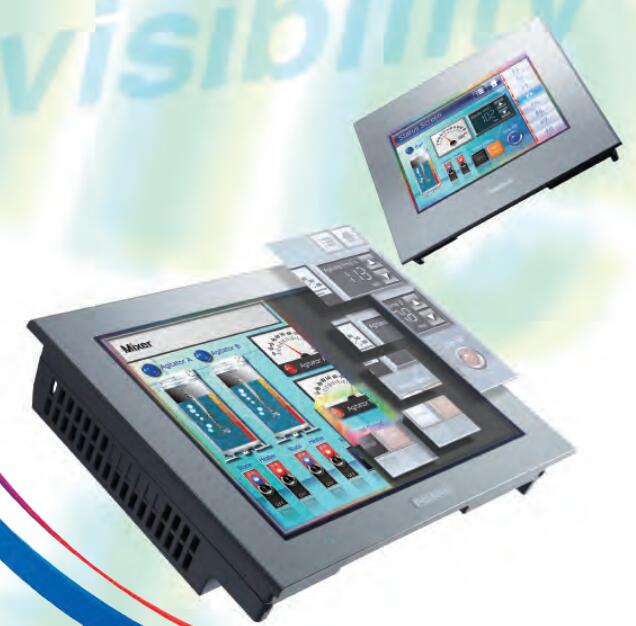

PFXGP4601TADC 12.1 inch man machine interface
Proface PFXGP4601TADC Manual And Instructions
PFXGP4601TADC datasheetPDF datasheet
PFXGP4601TADC OPERATION MANUAL
PFXGP4601TADC User's Manual
Proface PFXGP4601TADC Product information and technical parameters：
Brand: Proface
Name: 12.1 inch man machine interface
Model: PFXGP4601TADC
Input voltage: DC24V.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: there.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness control function of the backlight.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring.
With light and portable iPhone, iPad, touch iPod and other mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines.
