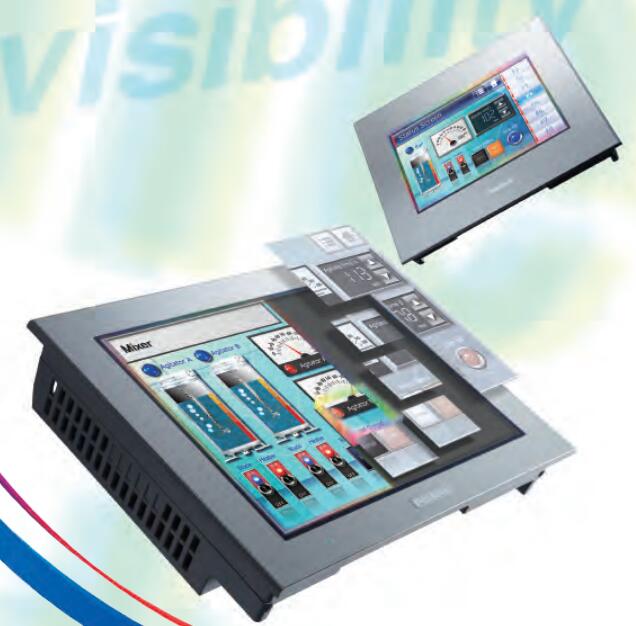

PFXGP4201TADW(GP-4201TW) 3.5 inch touch screen
Proface PFXGP4201TADW(GP-4201TW) Manual And Instructions
PFXGP4201TADW(GP-4201TW) datasheetPDF datasheet

Proface PFXGP4201TADW(GP-4201TW) Product information and technical parameters:
Brand: Proface
Name: 3.5 inch touch screen
Model: PFXGP4201TADW(GP-4201TW)
Input voltage: DC24V.
Screen size: 3.5 inches.
Display type (resolution):65536 color TFT (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 8MB (internal memory), SRAM128KB (backup memory).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: No.
Replaceable battery: no (rechargeable battery).
Alarm analysis function block: No.
Panel opening size:
Wide 156 x high 123.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: none.
Easily connect a variety of USB devices
Can be easily connected to the man-machine interface serial controller, EZ series accessories, bar code reader and USB memory.
Remote data acquisition and management
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency.

"Resolution: 640 x 480 pixels.
Display color: 256 color.
Internal memory: FEPROM 2MB.
Backup memory: SRAM 128KB.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8 PFXGP4201TADW(GP-4201TW).
This allows you to precisely adjust the font size to suit your layout PFXGP4201TADW(GP-4201TW)
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc PFXGP4201TADW(GP-4201TW). ).
Increase in the number of clocks, from the previous 3 to 8.
Different colors represent different levels of information.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design PFXGP4201TADW(GP-4201TW).
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Using Tags can make the picture editing more flexible.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data.
Production site data or data can be collected through the Pro-Server immediately to PC a variety of applications.
Automatic acquisition of production data and can improve the quality and productivity.
Touch panel operation is easier to set.
"Input voltage: DC24V.
Screen size: 10.4 inches.
Display type (resolution):65536 color TFT display LCD (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 259 x high 201mm (+1/0mm)
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the innternational standards PFXGP4201TADW(GP-4201TW).
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency PFXGP4201TADW(GP-4201TW).
