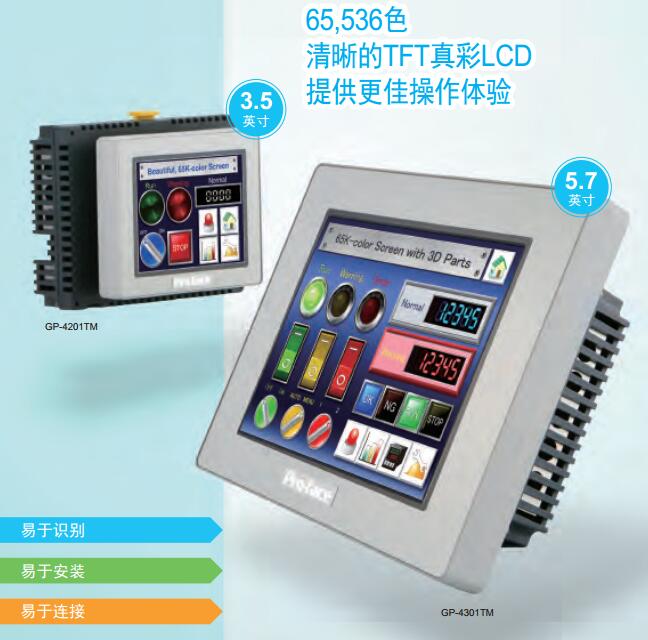

PFXGM4201TAD(GP-4201TM) 3.5 inch module type touch screen

Proface PFXGM4201TAD(GP-4201TM) Product information and technical parameters:
Brand: Proface
Name: 3.5 inch module type touch screen
Model: PFXGM4201TAD(GP-4201TM)
"Modular.
Input voltage: DC24V.
Screen size: 3.5 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 8MB (internal memory), nvSRAM128KB (non-volatile, no battery).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB): No.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: no (rechargeable battery).
Alarm analysis function block: No.
Coating models: none.
The use of drag and drop operations, can be easily shared between the man-machine interface and the control program of the symbolic register data,
Make the programming process intuitive and efficient.
In addition, the common and special control function is defined as the function block, which simplifies the design of the control system.
The man-machine interface picture is directly connected with the control program, which can realize the efficient programming.
6 Display Module 2 host module, can realize the 12 kinds of "intelligent platform".
Modular design, display module and the host module can be split,
Therefore can be replaced respectively.
Display module and host module free combination, function and size of flexible. "

NPN output type.
Display size: 3.8 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD: monochrome (amber / red).
Color: 8 levels of gray.
Ethernet interface: No.
Serial port: No.
CANopen interface: No.
USB (host):1.
USB (device): none.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: No PFXGM4201TAD(GP-4201TM).
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input, pulse output, PWM output PFXGM4201TAD(GP-4201TM)
Special DIO: No.
Expansion module EX module: up to 2.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment PFXGM4201TAD(GP-4201TM).
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running PFXGM4201TAD(GP-4201TM).
In order to meet the needs of users for small control devices, Pro-face integrated control and operation functions in the human computer interface.
In short, is to indicate the lights, instruments and other display devices and switches, buttons and other operational functions to integrate into a compact PLC.
In addition to reducing wiring and saving space, the design also greatly reduces the use of electrical components,
Which ensures the long service life of the equipment.
The compact models are equipped with standard I/O, and they can be used as a special I/O.
High / low pulse with maximum 100kHz and maximum 65kHz of the high speed counter can be achieved by the advanced control.
Strong I/O interface not only supports the need to switch and indicator light equipment, but also supports the need for sophisticated positioning of complex equipment.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Direct connection temperature controller with serial port.
Previously, the need to connect to the temperature controller PLC.
The use of 5.7 inch models (LT3000 Series), with a serial port connected to the thermostat or other types of control cards,
Total equipment costs can be reduced. Connect the external device with the prepared sample picture.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Using remote monitoring software GP-Viewer or data acquisition software EX Pro-Server,
Can easily monitor the production scene of tthe man-machine interface screen, or release production orders and real-time data collection PFXGM4201TAD(GP-4201TM).
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the dissplay module is installed in other locations PFXGM4201TAD(GP-4201TM).
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
