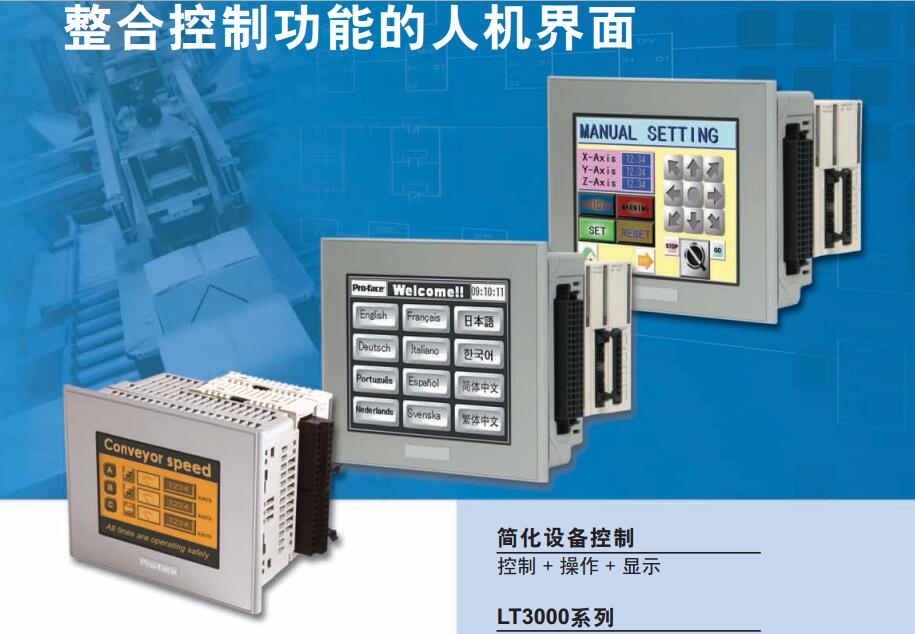

LT3201-A1-D24-C Integrated control function of programmable human computer interface
Proface LT3201-A1-D24-C Manual And Instructions
LT3201-A1-D24-C User's Manual
LT3201-A1-D24-C User's Manual
Proface LT3201-A1-D24-C Product information and technical parameters：
Brand: Proface
Name: Integrated control function of programmable human computer interface
Model: LT3201-A1-D24-C
PNP output type.
Display size: 3.8 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD: monochrome (amber / red).
Color: 8 levels of gray.
Ethernet interface: No.
Serial port: No.
CANopen interface: No.
USB (host):1.
USB (device): none.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input, pulse output, PWM output.
Special DIO: No.
Expansion module EX module: up to 2.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
In order to meet the needs of users for small control devices, Pro-face integrated control and operation functions in the human computer interface.
In short, is to indicate the lights, instruments and other display devices and switches, buttons and other operational functions to integrate into a compact PLC.
In addition to reducing wiring and saving space, the design also greatly reduces the use of electrical components,
Which ensures the long service life of the equipment.
Direct connection temperature controller with serial port.
Previously, the need to connect to the temperature controller PLC.
The use of 5.7 inch models (LT3000 Series), with a serial port connected to the thermostat or other types of control cards,
Total equipment costs can be reduced. Connect the external device with the prepared sample picture.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Using remote monitoring software GP-Viewer or data acquisition software EX Pro-Server,
Can easily monitor the production scene of the man-machine interface screen, or release production orders and real-time data collection.
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
The compact models are equipped with standard I/O, and they can be used as a special I/O.
High / low pulse with maximum 100kHz and maximum 65kHz of the high speed counter can be achieved by the advanced control.
Strong I/O interface not only supports the need to switch and indicator light equipment, but also supports the need for sophisticated positioning of complex equipment.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
...More relevant models >>>>
LT3201-A1-D24-C User's Manual
LT3201-A1-D24-C User's Manual
Proface LT3201-A1-D24-C Product information and technical parameters：
Brand: Proface
Name: Integrated control function of programmable human computer interface
Model: LT3201-A1-D24-C
PNP output type.
Display size: 3.8 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD: monochrome (amber / red).
Color: 8 levels of gray.
Ethernet interface: No.
Serial port: No.
CANopen interface: No.
USB (host):1.
USB (device): none.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input, pulse output, PWM output.
Special DIO: No.
Expansion module EX module: up to 2.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far as possible not to the scene on the recovery of the machine running.
In order to meet the needs of users for small control devices, Pro-face integrated control and operation functions in the human computer interface.
In short, is to indicate the lights, instruments and other display devices and switches, buttons and other operational functions to integrate into a compact PLC.
In addition to reducing wiring and saving space, the design also greatly reduces the use of electrical components,
Which ensures the long service life of the equipment.
Direct connection temperature controller with serial port.
Previously, the need to connect to the temperature controller PLC.
The use of 5.7 inch models (LT3000 Series), with a serial port connected to the thermostat or other types of control cards,
Total equipment costs can be reduced. Connect the external device with the prepared sample picture.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Using remote monitoring software GP-Viewer or data acquisition software EX Pro-Server,
Can easily monitor the production scene of the man-machine interface screen, or release production orders and real-time data collection.
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
The compact models are equipped with standard I/O, and they can be used as a special I/O.
High / low pulse with maximum 100kHz and maximum 65kHz of the high speed counter can be achieved by the advanced control.
Strong I/O interface not only supports the need to switch and indicator light equipment, but also supports the need for sophisticated positioning of complex equipment.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy to use system design.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
"Size: 5.7 inches.
Display type: single color (blue) LCD.
Resolution: 320 x 240 pixels (QVGA).
Display color: monochrome (8 gray level).
Power supply: DC24V.
Interface: USB (TYPE-A), RS-232C, RS-422/485 (MPI).
ID management and operation log reduces downtime.
Improve the operation mode, reduce the cost and workload LT3201-A1-D24-C.
Analysis of failure causes according to the operation log.
Check register status on historical trend chart LT3201-A1-D24-C
Drag and drop functionality makes the software interface easier to operate.
A variety of components to provide a variety of components, easy to create a beautiful picture.
In addition, there are a variety of 256 color components can be used.
Using the alarm log to quickly check and display the alarm message and register value, it is easier to find the cause of the fault LT3201-A1-D24-C.
Register value will be recorded when the alarm is issued.
Therefore, the state of the register and its value can be obtained while acquiring the alarm message.
A comparison of the data is helpful to find the cause of the fault.
These "sample parts" can be used directly, and the design time is greatly reduced LT3201-A1-D24-C.
According to ID number of easy access to the operation log, through the analysis of the operation to improve production efficiency.
Use ID based on the number of authorized mode of operation, can be recorded when, who performed the operation.
Using this data, you can analyze the causes of all the faults that have occurred.
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
You can easily and intuitively set the address by dragging and dropping the mouse.
In addition, click on the use of the address can be displayed on the screen number and part number.
Click the part number to jump to the screen using the widget.
The same software supports all 3000 series of Pro-face man-machine interface.
From the screen to create the programming, the functions are simple and easy to use.
Learn a software, master all the skills.
Support efficient image creation. ""Touch screen gp2301-tc41-24v (gp-2301t)" in the production of CF card interface, data management and maintenance more smooth and simple picture.
Aluminum magnesium alloy frame strengthen heat and dust.
Screen size: 5.7 inches.
Display type: TFT color LCD.
Resolution: 320 x 240 pixels.
Display color: 256 color.
Internal memory: 1MB Memory card.
Backup memory: SRAM 128KB.
Different colors represent different levels of information.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient 1,2,4 and 8,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
1200 the available styles can be quickly and easily create a simple arrangement of parts and markers.
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc.).
Increase in the number of clocks, from the previous 3 to 8.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
The use of tags can make the pictture editing more flexible LT3201-A1-D24-C.
Up to 3 windows can be displayed at the same time (2 of which are U tag windows).
Display history alarm data.
Production site data or data can be collected through the Pro server to PC immediately to a varriety of applications LT3201-A1-D24-C.
Automatic acquisition of production data and can improve the quality and productivity.
Touch panel operation is easier to set." "
Display type: single color (blue) LCD.
Resolution: 320 x 240 pixels (QVGA).
Display color: monochrome (8 gray level).
Power supply: DC24V.
Interface: USB (TYPE-A), RS-232C, RS-422/485 (MPI).
ID management and operation log reduces downtime.
Improve the operation mode, reduce the cost and workload LT3201-A1-D24-C.
Analysis of failure causes according to the operation log.
Check register status on historical trend chart LT3201-A1-D24-C
Drag and drop functionality makes the software interface easier to operate.
A variety of components to provide a variety of components, easy to create a beautiful picture.
In addition, there are a variety of 256 color components can be used.
Using the alarm log to quickly check and display the alarm message and register value, it is easier to find the cause of the fault LT3201-A1-D24-C.
Register value will be recorded when the alarm is issued.
Therefore, the state of the register and its value can be obtained while acquiring the alarm message.
A comparison of the data is helpful to find the cause of the fault.
These "sample parts" can be used directly, and the design time is greatly reduced LT3201-A1-D24-C.
According to ID number of easy access to the operation log, through the analysis of the operation to improve production efficiency.
Use ID based on the number of authorized mode of operation, can be recorded when, who performed the operation.
Using this data, you can analyze the causes of all the faults that have occurred.
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
You can easily and intuitively set the address by dragging and dropping the mouse.
In addition, click on the use of the address can be displayed on the screen number and part number.
Click the part number to jump to the screen using the widget.
The same software supports all 3000 series of Pro-face man-machine interface.
From the screen to create the programming, the functions are simple and easy to use.
Learn a software, master all the skills.
Support efficient image creation. ""Touch screen gp2301-tc41-24v (gp-2301t)" in the production of CF card interface, data management and maintenance more smooth and simple picture.
Aluminum magnesium alloy frame strengthen heat and dust.
Screen size: 5.7 inches.
Display type: TFT color LCD.
Resolution: 320 x 240 pixels.
Display color: 256 color.
Internal memory: 1MB Memory card.
Backup memory: SRAM 128KB.
Different colors represent different levels of information.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient 1,2,4 and 8,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
1200 the available styles can be quickly and easily create a simple arrangement of parts and markers.
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc.).
Increase in the number of clocks, from the previous 3 to 8.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
The use of tags can make the pictture editing more flexible LT3201-A1-D24-C.
Up to 3 windows can be displayed at the same time (2 of which are U tag windows).
Display history alarm data.
Production site data or data can be collected through the Pro server to PC immediately to a varriety of applications LT3201-A1-D24-C.
Automatic acquisition of production data and can improve the quality and productivity.
Touch panel operation is easier to set." "
...More relevant models >>>>
