GP4106W1D Serial RS-422/485 touch screen
Proface GP4106W1D Manual And Instructions
GP4106W1D User's Manual
GP4106W1D User's Manual
Proface GP4106W1D Product information and technical parameters：
Brand: Proface
Name: Serial RS-422/485 touch screen
Model: GP4106W1D

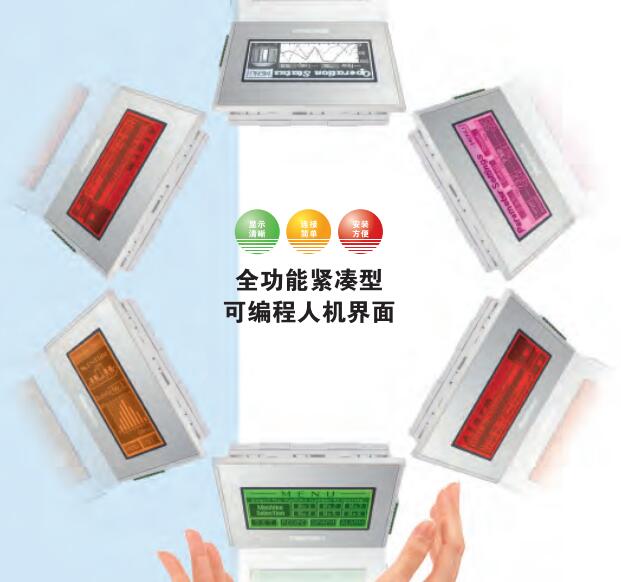

"Compact type, RS-422/485 type, white / Pink / red three color LED backlight.
Input voltage: DC24V.
Screen size: 3.4 inches.
Display type (resolution):STN monochrome LCD (200 x 80 pixels).
Touch panel type: analog resistance.
Memory: 2.2MB (internal memory).
Ethernet interface: No.
Serial port: RS-422/485.
SD card slot (max 32GB): No.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: no (rechargeable battery).
Alarm analysis function block: No.
Coating models: none.
The use of drag and drop operations, can be easily shared between the man-machine interface and the control program of the symbolic register data,
Make the programming process intuitive and efficient.
In addition, the common and special control function is defined as the function block, which simplifies the design of the control system.
The man-machine interface picture is directly connected with the control program, which can realize the efficient programming.
6 Display Module 2 host module, can realize the 12 kinds of "intelligent platform".
Modular design, display module and the host module can be split,
Therefore can be replaced respectively.
Display module and host module free combination, function and size of flexible. "
