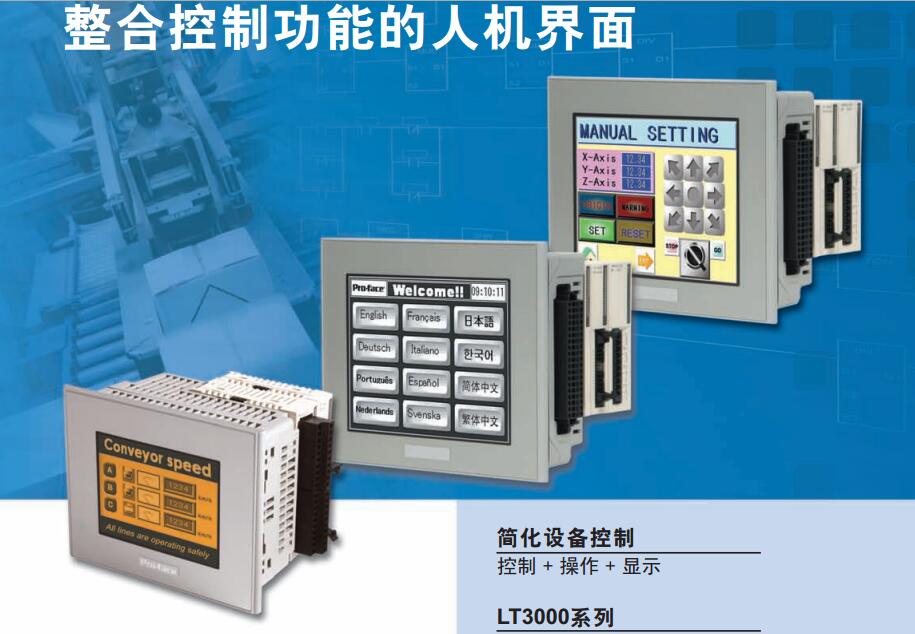

Controller DIO (PNP model):6 point type NPN input, 2 point NPN type output, connector: 12 pin.
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel PFXZLTEUDRA16RT
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture. Used to interface the main machine output serial port (D-sub 9 pin concave type) directly connected to the RS-422 terminal block.Screen size: 5.7 inches.
Display type: TFT color LCD.
Resolution: 320 x 240 pixels.
Display color: 256 color.
Internal memory: FEPROM 2MB.
Backup memory: SRAM 256KB.
Interface: CF card, Ethernet, serial port expansion.
Touch input unit, start input mode.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Using Tags can make the picture editing more flexible.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data.
Touch panel operation is easier to set.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
PFXZLTEUDRA16RT Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PFXZLTEUDRA16RT&select=5
