Type: open host module.
Application storage space: 64MB (CFast card).
Backup storage space: NVRAM 320 KB.
Ethernet port: 2.
Serial port: 2.
Windows applications: support.
Can run Windows applications, suitable for harsh environment. (HMI Runtime).Connector for connecting DC power cord (5)GP-230/250/270 series is replaced by ST series, the gap filled with the opening of the panelThe main controller is connected to the man-machine interface for MPI communicationFor the DVI input to GP30003 PFXZGPST2H14 Inch Touch Screen anti UV protective film (1 pieces).Used to convert the USB interface to the serial interface (RS-232C). A modem or bar code reader that can be connected to support RS-232C.DIO model /PNP output type.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 20 points.
Built in DIO output: 10 points.
Built in AIO input: No.
Built in AIO output: No.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.

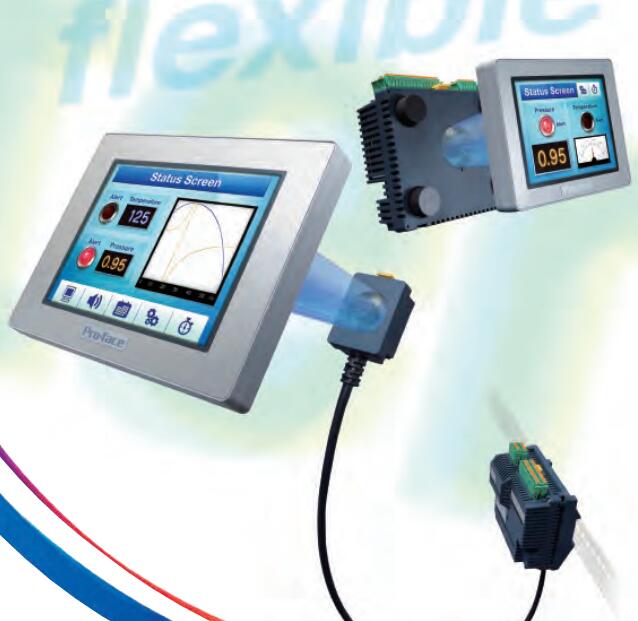

Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
PFXZGPST2H1 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PFXZGPST2H1&select=5
