Used to connect the 2-Port adapter to GP4000Output points: 1 points.
Rated output voltage range: voltage output: 0 to 10V, current input: 4 to 20mA.
Resolution: 12. Touch screen anti ultraviolet protective film (1 pieces).Applicable to GLC-2600/2500, the need for bus converter (PSL-CONV00).COM1 pin adapter, which is used to connect the communication components that are dedicated to the COM2 interface to the COM1 interface of the man-machine interface PFXZCFUV41Controller CANopen models: bit variable input: 512 points, the output of a bit: 512 point, integer variable input: 128 point, integer variable output: 128 points, connectors: D-Sub 9 pin (convex type).

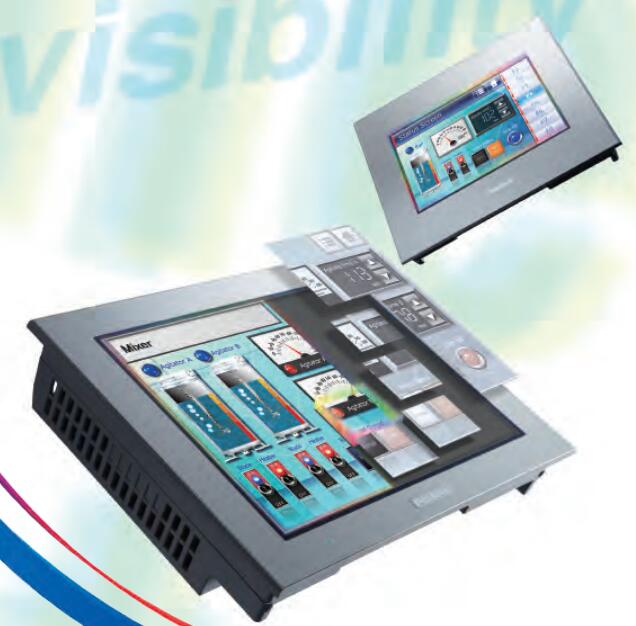

Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
PFXZCFUV41 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PFXZCFUV41&select=5
