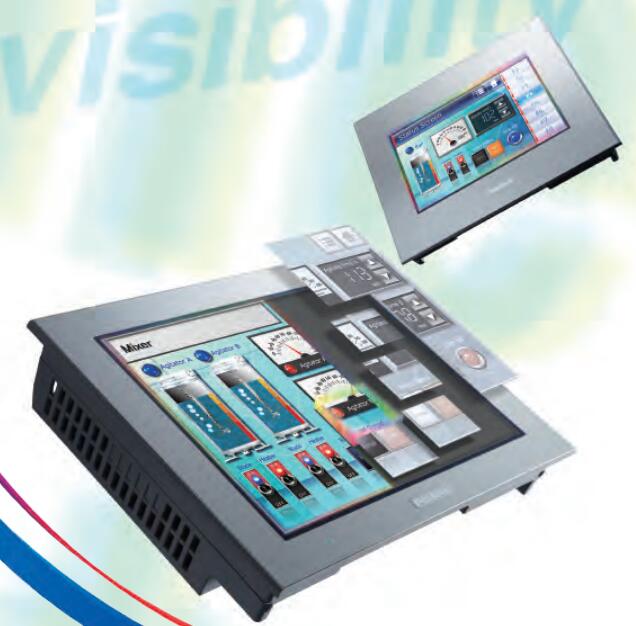

Specifications: DC24/S (standard) class models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Touch panel type: resistance type (analog).
Error visualization.
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit PFXZCETWW1
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture. Display size: 3.4 inches.
Display color: STN monochrome LCD16 gray level.
Resolution: 200 x 80 pixels.
Backlight: Green / orange / red.
Touch screen type: resistance type (analog).
Storage space: 2.2MB.
Interface: RS-485 (isolation).
Rated voltage: DC24V.
Backlight color scheme and interface type!
Two groups of 3 color backlight and serial port or Ethernet interface combination, a total of 8 models to choose from.
Horizontal or vertical installation options!
GP4100 can be installed horizontally or vertically, and can be used flexibly in many occasions.
Resolution of 200 x 80 pixels, small characters can be clearly displayed, so that the picture editing more flexible.
Image font support multi language features, can clearly and beautifully display a variety of languages.
You can display messages in an image font so that it is easy to read.
With bitmap fonts and image fonts can make the figures show more clearly.
The use of 16 gray level components, you can create a clear and easy to operate the screen.
Provide a variety of graphics for screen design selection, so that the running state at a glance.
Using 16 gray, can clearly show the JPEG and BMP images.
Can create a unique start screen.
PFXZCETWW1 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PFXZCETWW1&select=5
