SP-5660TP+SP-5B40 combination.
Screen size: 12 inches (XGA) WLAN models.
Multi touch: support.
Windows applications: support.
Application storage space: 64MB (CFast card).
Video / audio: support.
CFast card: 2.
SD card: 1.
USB interface Type-A:4.
USB interface Mini-B:2.
Serial port: 2.
Ethernet port: 2.
Rated voltage: DC24V.

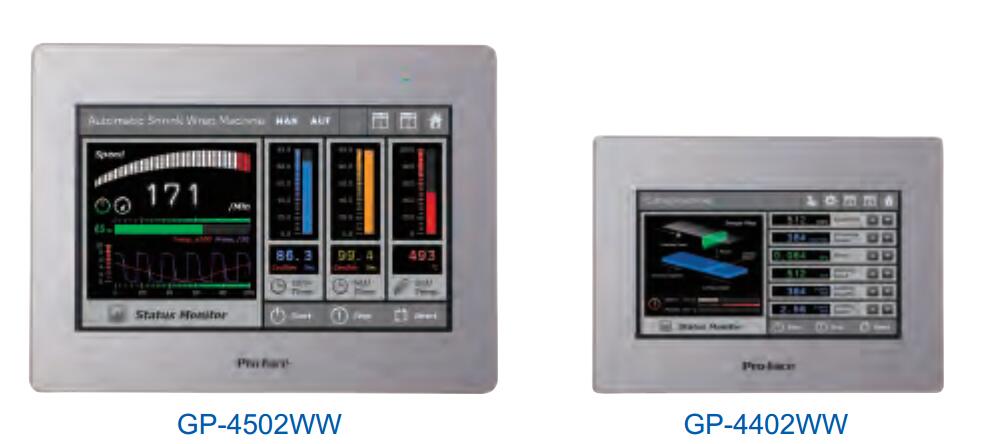

Intelligent human computer interface connecting people and information to achieve the best communication PFXGP4502WADW
Pro-face with a very forward-looking design, launch a new product "intelligent man-machine interface, to achieve a wider connectivity before.
SP5000 series supports multiple formats of data, and can transmit data in an appropriate format.
High performance display module, equipped with brightness sensor, support multi touch operation and automatic scaling.
Display module and host module free combination, function and size of flexible!
With the continuous improvement of the performance of the machine, production management and preventive maintenance of the operation of the use of data, the growing popularity of the cloud,
Big data is coming to the first line of production.Controller NETWORK FLEX models: bit variable input: 512 points, the output of a bit: 512 points, integer variable input: 128 point, integer variable output: 128 points, connectors: 6 pin.
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 12.1 inches.
Resolution: 800 x 600 pixels (SVGA).
Display color: 65536 color (no flash) /16384 color (3 speed flicker).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.

PFXGP4502WADW Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PFXGP4502WADW&select=5
