CFast cards (32GB, SLC,) inserted in the CFast slot for storage.For 5.7 inch models, connect the connector to the DIO interface. For connecting external I/O devices. (5 / set)For 3.8 inch models, prevent cable loose from the USB cable fastening clip (5 / set).Connector for connecting a serial port (1)Adapter for EX module (5 / set)A veneer, for the GP4000 series back loading models of full flush (white, 1)Disposable film (5 sheets / sets) for protecting screen against contamination of human computer interface CA1-STDLRG-01Display size: 3.8 inches.
Display type: monochrome LCD.
Display color: black and white (2 gray level) / black and white (8 gray level).
Backlight: LED backlight.
Resolution: 320 x 240 pixels.
Brightness control: 2 level adjustment can be carried out by touch panel.
Contrast control: 8 level adjustment can be carried out through the touch panel.
Memory: EPROM 640KB FLASH.
Serial port: RS-232C. Replaceable anti fouling film for protecting screen protective film (5 sheets / cover)."Modular.
Input voltage: DC24V.
Screen size: 3.5 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 8MB (internal memory), nvSRAM128KB (non-volatile, no battery).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB): No.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: no (rechargeable battery).
Alarm analysis function block: No.
Coating models: none.
The use of drag and drop operations, can be easily shared between the man-machine interface and the control program of the symbolic register data,
Make the programming process intuitive and efficient.
In addition, the common and special control function is defined as the function block, which simplifies the design of the control system.
The man-machine interface picture is directly connected with the control program, which can realize the efficient programming.

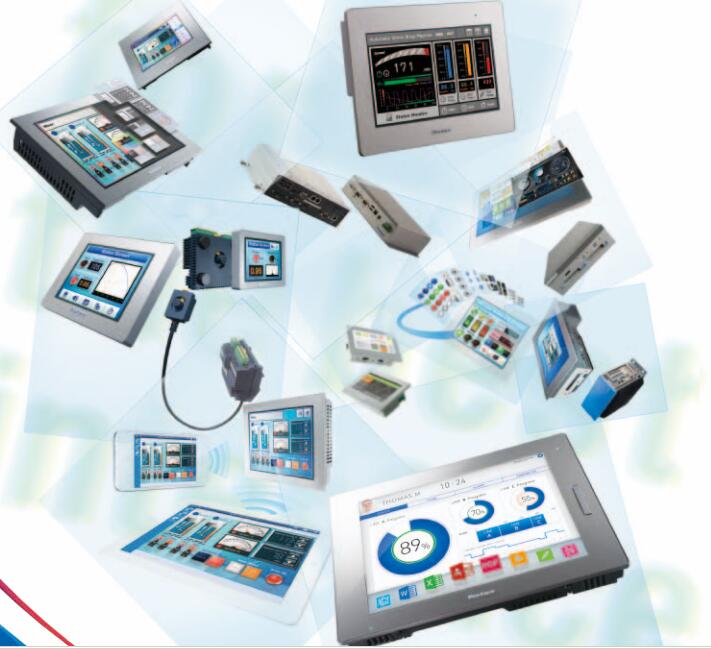

6 Display Module 2 host module, can realize the 12 kinds of "intelligent platform".
Modular design, display module and the host module can be split,
Therefore can be replaced respectively.
Display module and host module free combination, function and size of flexible. "
CA1-STDLRG-01 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=CA1-STDLRG-01&select=5
